LP-FA-SF-1207-30-CW

Single-Frequency 1207nm Fiber Amplifiers (1095-1340nm)

request for quotation

Continuous Mid-Infrared Optical Parametric Oscillator
Pump Source
Optical Lattice
Optical Trap
Interferometry
Holographic Imaging

Parameters: Operating wavelength 1095-1340nm, Output optical power 2-30W, Bandwidth ＞±5nm, Operation Mode CW

Our Single-Frequency Fiber Amplifiers are designed to provide optical gain across a broad range of wavelengths while maintaining the integrity of narrowband, single-frequency signals.

These amplifiers are optimized to deliver high output power for narrowband sources, ensuring excellent performance without triggering Stimulated Brillouin Scattering (SBS). These modules may also be paired with a second-harmonic generation (SHG) module to efficiently convert NIR light into visible light.

Designed to amplify single-frequency signals without triggering SBS, Large variation of wavelengths, High output power, Diffraction-limited fiber or collimated beam output.

Related Products

1560 nm High-Power Laser Source with 2 W Output Power

This product is a high-performance 1560 nm wavelength laser with an output power of up to 2 W, integrating a DFB seed laser source and EDFA amplification technology. The seed source operates with a typical current of 100 mA, featuring low power consumption and excellent wavelength stability at 1560.05 nm.With a polarization extinction ratio (PER) of up to 20.7 dB, the laser provides excellent polarization performance, while also offering a 2 nm tuning range. The measured laser linewidth is only 63.922 kHz, demonstrating ultra-narrow spectral characteristics.This laser is ideally suited for applications such as fiber sensing, coherent communication, and high-precision optical spectroscopy measurements.
1120-1340nm Raman fiber amplifier

LD-PD PTE.LTD. has launched a single-frequency Raman fiber amplifier with an ultra-wide wavelength range of 1120-1700 nm, filling the gap in emission wavelengths of rare-earth ion-doped fiber lasers. This series of single-frequency Raman amplifiers, based on Raman amplification technology, boasts a maximum output power of up to 30 W. Its all-polarization-maintaining, all-fiber structure ensures the laser features a compact design, excellent long-term stability, and maintenance-free operation. Meanwhile, it guarantees extremely low intensity noise and phase noise of the output laser. With characteristics such as high power, low-noise amplification, and ultra-fast seed cut-off protection, this amplifier meets the demand for lasers with special wavelengths in applications like laser atomic cooling and laser spectroscopy.
1340-1530nm Raman fiber amplifier

LD-PD PTE.LTD. has launched a single-frequency Raman fiber amplifier with an ultra-wide wavelength range of 1120-1700 nm, filling the gap in emission wavelengths of rare-earth ion-doped fiber lasers. This series of single-frequency Raman amplifiers, based on Raman amplification technology, boasts a maximum output power of up to 30 W. Its all-polarization-maintaining, all-fiber structure ensures the laser features a compact design, excellent long-term stability, and maintenance-free operation. Meanwhile, it guarantees extremely low intensity noise and phase noise of the output laser. With characteristics such as high power, low-noise amplification, and ultra-fast seed cut-off protection, this amplifier meets the demand for lasers with special wavelengths in applications like laser atomic cooling and laser spectroscopy.
1600-1750nm Raman fiber amplifier

LD-PD PTE.LTD. has launched a single-frequency Raman fiber amplifier with an ultra-wide wavelength range of 1120-1700 nm, filling the gap in emission wavelengths of rare-earth ion-doped fiber lasers. This series of single-frequency Raman amplifiers, based on Raman amplification technology, boasts a maximum output power of up to 30 W. Its all-polarization-maintaining, all-fiber structure ensures the laser features a compact design, excellent long-term stability, and maintenance-free operation. Meanwhile, it guarantees extremely low intensity noise and phase noise of the output laser. With characteristics such as high power, low-noise amplification, and ultra-fast seed cut-off protection, this amplifier meets the demand for lasers with special wavelengths in applications like laser atomic cooling and laser spectroscopy.

Core Parameters
Overview
PDF
Request for Quotation

Core Parameters

Operating wavelength 1095-1340nm, Output optical power 2-30W, Bandwidth ＞±5nm, Operation Mode CW

Overview

Features

● Ultra-Stable Output Power

● Excellent Beam Quality

● Seed Power-off Protection System

● Low Noise

Specification
Part number	LP-FA-SF-X-Y-CW(1)
Wavelength Range	976-978nm	1012-1020nm	1020-1080nm	1080-1095nm	1095-1340nm	1340-2000nm
Output Power	＞2W/8W	＞2W/10W/30W/ 50W/100W	＞2W/10W/30W/50W/ 100W/130W/180W	＞2W/10W/30W/ 50W/100W	＞2W/ 10W/30W	＞2W/5W
Typical Wavelength	977nm, 1012nm, 1064nm, 1112nm
Bandwidth	＞±2nm	＞±2nm	＞±10nm	＞±5nm	＞±5nm	＞±2nm
Relative Intensity Noise	<0.03% (RMS, 10Hz-10MHz Integration)
Power Stability	<0.75% @3hours, RMS
Power Tuning Range	10-100%
Output Mode	Single Mode PM fiber，FC/APC Connector（Output Power≤2W) OR Collimated Output（All Power）
Beam Diameter（3）	0.6±0.2mm(Output Power≤30W)， 1.7±0.3mm(Output Power>30W)
Pointing Stability	<±2μrad/℃
Beam Quality	TEM00，M²<1.1
Polarization	Linear, >23dB
Seed Laser Input Power	≥10mW(2)，Single Mode PM Fiber，FC/APC Connector
Seed Laser Input Isolation	>25dB
Output Laser Isolation	>25dB
Cooling	Air Cooling(Output Power≤50W)/Water Cooling（All Output Power）

Operating Environment & Power Supply
Temperature	15-30 ℃（Air Cooling） OR 15-35 ℃（Water Cooling）
Power Supply	100V-240V, AC, 50/60Hz
Communication	RS422

(1)X is the center wavelength，Y is the output power, for 1064nm 50W amplifier, the part number is LP-FA-SF-1064-50-CW

(2) Default input power should be 10-50mW, for higher or lower input power, please email us for customization

(3) Beam size for collimated outout，If PM fiber FC/APC connector output，there is no extra collimator

Power Spectral Testing

Table 1. Output power versus current curve

Pump Current(A)	Output Power (W) @35mW Seed Laser	PD2 Feedback	PD3 Feedback Value
8	0.03
9	0.08
10	0.32	3	22
11	1.37	18-25	95
12	4.35	77-100	308
13	9.36	190-260	615
14	15.8	390-500	1021
15	21.4	480-620	1322
16	26.9	640-860	1348
16.5	29.2	800-1100	1350
16.7	30.5	800-1410	1360

Spectral Testing

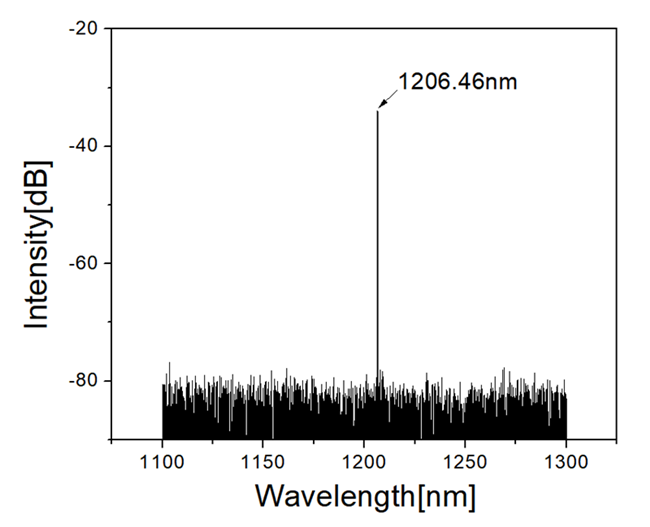

The amplified output delivers 30 W at a central wavelength of 1206.46nm, with a signal-to-noise ratio of 42dB.

Single-Frequency 1207nm Fiber Amplifiers (1095-1340nm)1.png

Figure 1. Output spectrum at 30 W power

Power Stability Testing

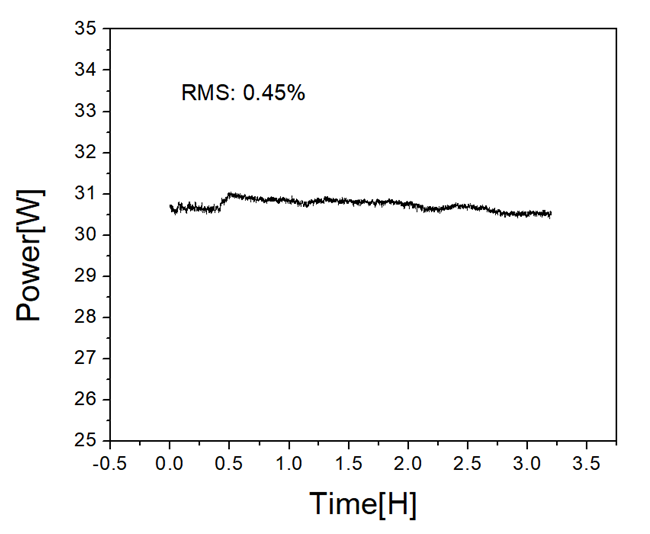

The laser has an output power of 30 W, with an RMS power stability of 0.45% over a 2-hour period.

Single-Frequency 1207nm Fiber Amplifiers (1095-1340nm)2.png

Figure 2. 2-hour output power stability test

Polarization degree testing

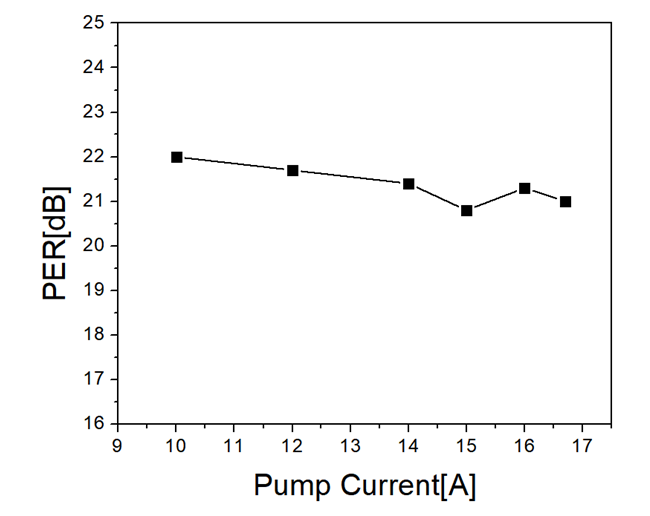

The output laser is linearly polarized light with a polarization degree exceeding 19 dB.

Single-Frequency 1207nm Fiber Amplifiers (1095-1340nm)3.png

Figure 3. Polarization degree measurement under different pump currents

Beam quality

The output beam quality measurement yields an M² value of 1.04. The collimated output spot diameter is approximately 1.5 mm.

Single-Frequency 1207nm Fiber Amplifiers (1095-1340nm)4.png

Figure 4. M² Test

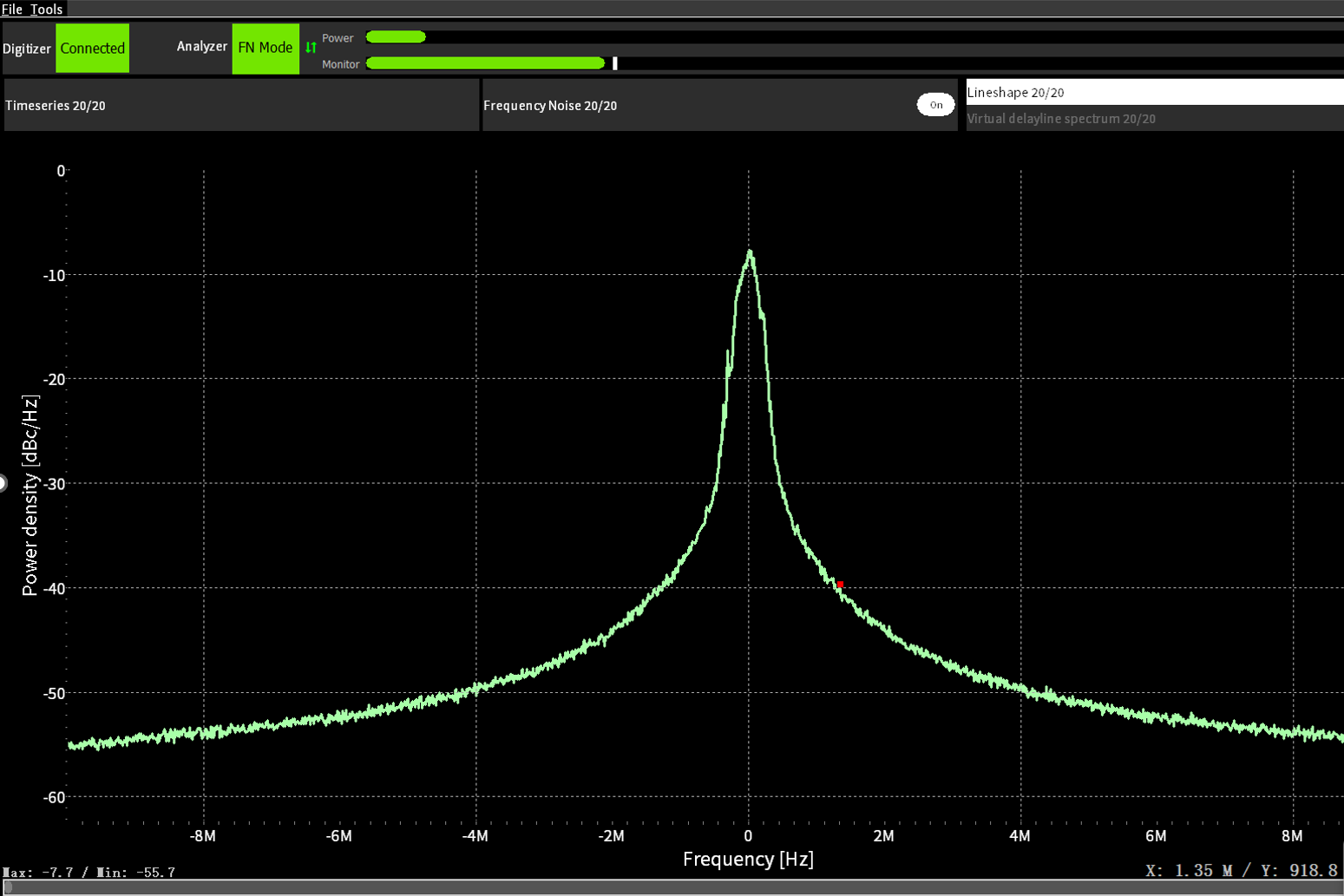

Line width testing

The seed line width is 254 kHz, and the amplified output line width measurement is 254kHz.

Single-Frequency 1207nm Fiber Amplifiers (1095-1340nm)5.png
